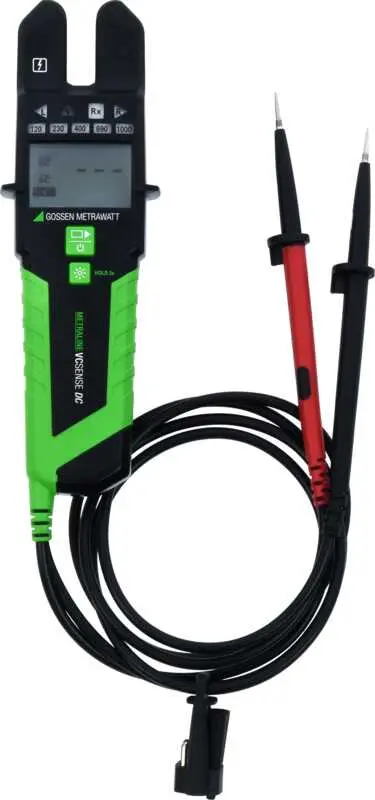

The METRALINE VC SENSE DC is an extremely versatile test instrument with numerous measuring functions which has proven its worth in various applications. Whether voltage testing, resistance measurement, continuity testing or diode testing is required – thanks to its vibration motor and sound generator, the instrument delivers reliable feedback and precise test results. Its innovative DC measuring method, which is unique throughout the market, provides you with the ideal tool for any situation in routine daily testing.

• Voltage measurement from 1 to 1000 V AC TRMS, 1 to 1500 V DC
• Current measurement from 0.1 to 200 A AC/DC
• Single-pole phase test
• 2-pole phase sequence detection
• Resistance measurement from 0 to 100 kΩ
• Continuity testing, diode testing
• Frequency measurement from 0 to 800 Hz, transducer in the fork
• Broken cable detection
• Vibration motor and sound generator for reliable feedback
• Current fork opening: 19 mm
• Measuring category: CAT IV 600 V, CAT III 1000 V, CAT II 1000 V

• Seamlessly adapts to your daily work routine thanks to user-friendly operation
• Safe and convenient work is assured!
• Versatile thanks to the very narrow measuring fork

1 METRALINE VC SENSE, M611U
2 4 mm test probe tip adapters
2 Safety caps, CAT III / 1000 V, GS 38
2 Batteries (1.5 V, AAA, IEC LR03)
1 Operating instructions
