Meisterpaket PROFiTEST INTRO

SKU: M503BCategoria: Etichette: , , , , ,

“INTRO master package” test instrument set for testing the effectiveness of protective measures at stationary electrical installations after completion, repair or expansion, and for periodic testing, especially for the fulfillment of DGUV regulation 3.

“INTRO master package” test instrument set with PROFITEST INTRO and defined accessories for testing the effectiveness of protective measures at stationary electrical installations in accordance with testing standards IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measuring category: 300 V CAT IV / 600 V CAT III.Pacchetto master PROFiTEST INTRO

  • Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
  • Storage concept for up to 50,000 data records
  • Testing of all up-to-date AC/DC sensitive RCDs, and many others
  • User safety by means of PE detection when using finger contact
  • Selected accessories for pending measuring tasks

  • Defined accessories for special measuring tasks
  • Broad-range measuring device for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
  • Loop and line impedance measurement with DC bias magnetization
  • Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
  • Low-resistance measurement with automatic polarity reversal
  • Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, F, B, B+ and EV)
  • Measurement of earth resistance (loop)

  • Defined accessories for special measuring tasks
  • Intuitive user prompting with help function which provides support for pending measuring tasks
  • All decisive measuring functions can be quickly selected with the rotary switch.
  • Especially well suited for mobile use, even at construction sites and in industrial environments, thanks to the compact, impact-resistant housing with integrated rubber protector
  • Also suitable for international use thanks to extensive setting options for language etc.

Testing of the effectiveness of protective measures at stationary electrical installations per IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100) and other country-specific standards. For example general electrical installations with alternating or 3-phase current, public facilities, public authorities, universities, service providers in accordance with DGUV A3 etc.

Istruzioni per l’uso
Scheda tecnica
Opuscolo, volantino, brochure, …

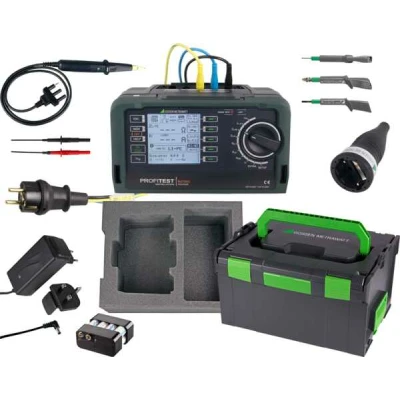

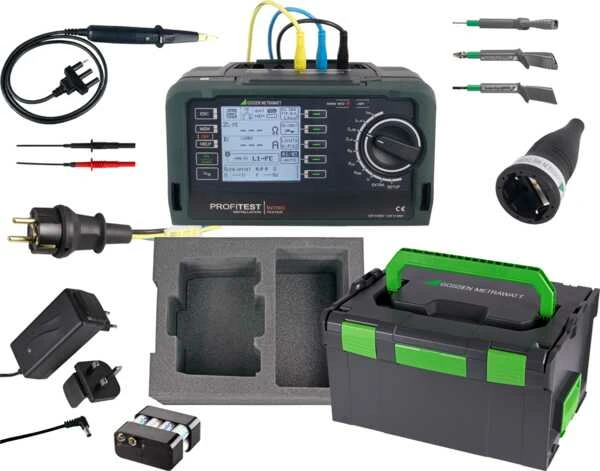

1 PROFITEST INTRO
1 Neck strap
1 Battery pack
1 KS-PROFiTEST INTRO (Z503L)
1 USB interface cable
1 Factory calibration certificate
1 Condensed operating instructions
1 Supplementary sheet with safety information
1 PRO-Schuko measuring adapter
1 PRO jumper
1 VARIO plug adapter set
1 Set of probes
1 SORTIMO plastic system case with insert
