High-precision contact measuring meter for luminance class B DIN 5032-7

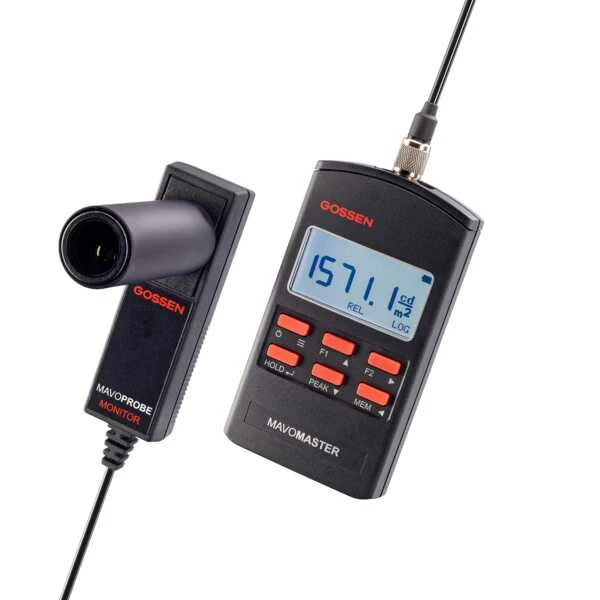

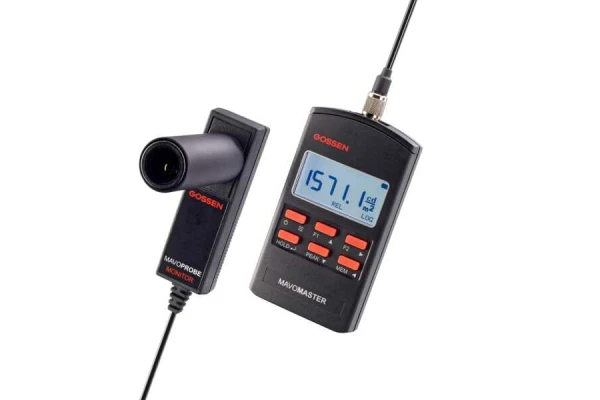

The combination of MAVOMASTER and MAVOPROBE MONITOR forms a high-precision luminance meter for surface measurement and is classified according to class B DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476. It measures the brightness effect of a luminous surface in candela per square meter (cd/m²) or foot-lambert (fL).

  • Extensive measuring functions, relative, integral, deviation, ratio measurement
  • Recording of minimum value, maximum value and mean value calculation
  • Data logger with adjustable log interval
  • Large 4 GB measured value memory, readable via USB, such as an external drive on the PC
  • Continuous operation via USB with power bank, plug-in power supply or on the PC
  • EXCEL macros for reporting and data logging
  • Measuring device and calibration from a single source!


  • Measuring range: 0.001 cd/m² … 19,999 cd/m²
  • Accuracy: +/- 2.5% +/- 1 digit
  • Light entry surface: Ø 19 mm


  • Measuring rate: 2 measurements / second
  • Probe connection cable: 1.5 m, pluggable
  • Supply: 1 × 1.5 V Mignon type AA, continuous operation via USB interface
  • Interface: USB 2.0, Micro-B socket
  • Memory: 4 GB

Istruzioni per l’uso
Opuscolo, volantino, brochure, …

1 x adapter disk
1 x rubber protective cover
1 x 1.5V Mignon alkaline manganese battery (IEC LR 6)
1 x USB 2.0 cable plug A to plug Micro-B, length 1.0 m
1 x EXCEL reporting / datalogger (download)

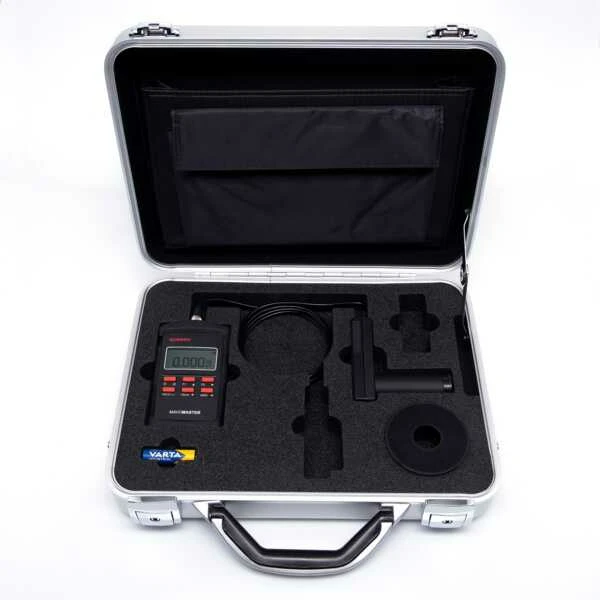

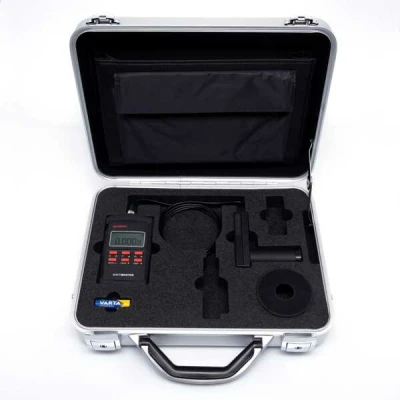

1 x aluminum transport case
1 x operating instructions D/GB
1 x final test certificate
