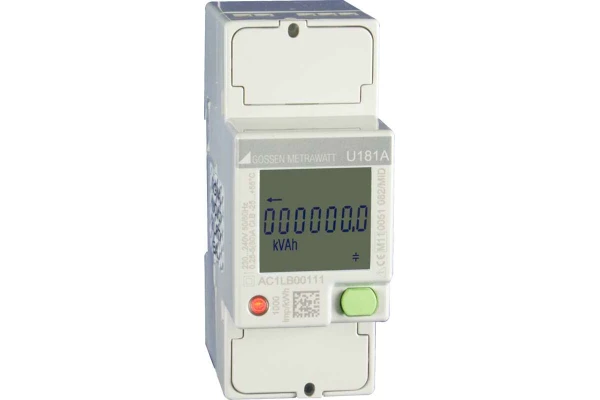

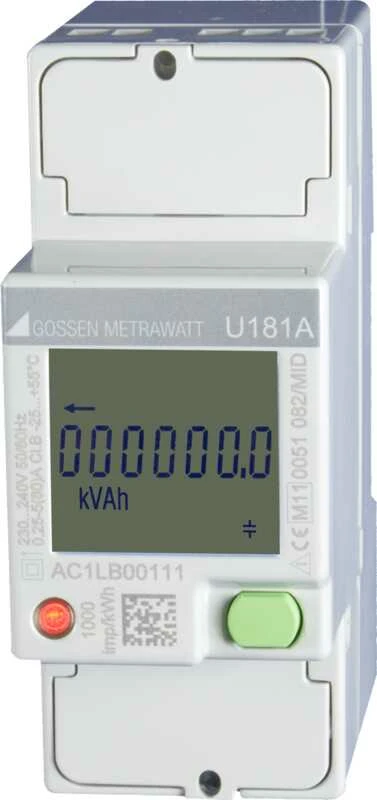

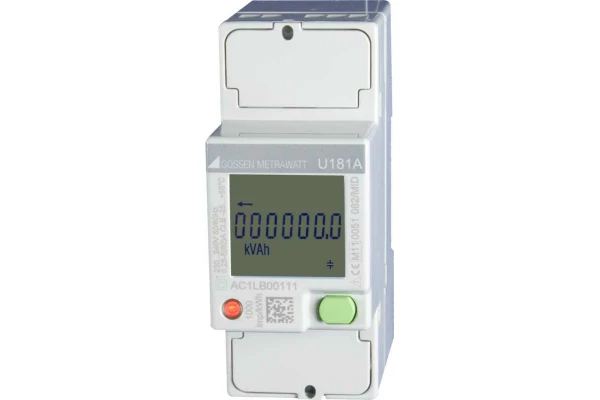

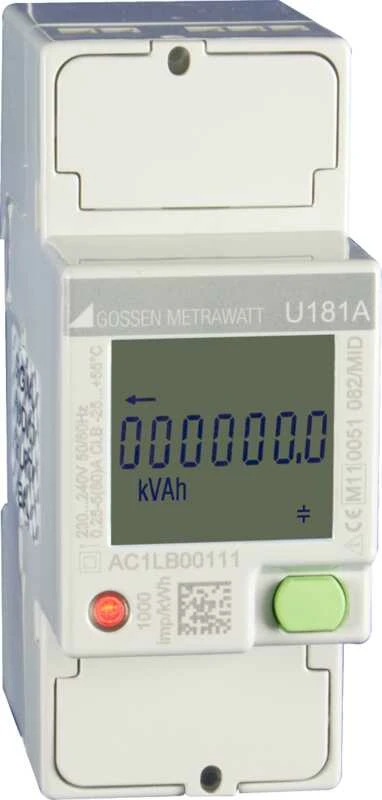

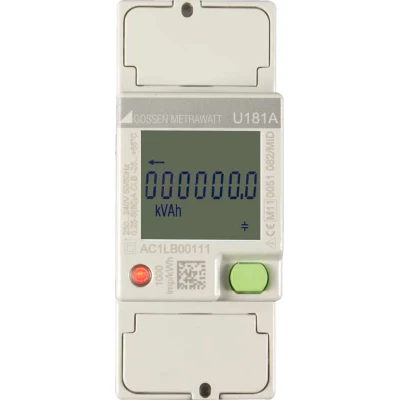

  • Compact, double-tariff energy meter for 4 quadrants, import and export, partial and aggregate meter and up to 30 measured values for real-time quantities
  • Variants for 2, 3 and 4-wire-systems with 80 A direct-connection, or 1A and 5A transformer connection
  • Programmable current transformer ratio of 1 to 10000 and additionally displayable secondary value for energy
  • Double-tariff measurement with input for tariff switching
  • Partial meter can be started, stopped and reset
  • Active energy measurement per EN50470-3, class B, for industrial and commercial applications, as well as demanding household applications
  • Cost savings thanks to initial calibration at the factory in accordance with MID, conformity assessment procedure modules B and D
  • Reactive energy measurement per EN 62053-23, class 2
  • Phase sequence indicator and error detection for violation of voltage, current and frequency measuring ranges
  • 2 programmable pulse outputs for energy values
  • Flexible communication via infrared interface and optional interface modules for M-Bus, Modbus and Ethernet
  • Large LCD panel with background illumination
  • Tamper-proof covers, configuration disabling
  • 3 year guarantee
  • Made in EU

Energy Meters

System Voltage – Output of reactive energy (varh) For direct connection For transformer connection

via display and interface 80 A 1 (6) A and 5 (6) A

2-wire 230 – 240 V, 50 / 60 Hz U181A –

3-wire 3x 400 – 415 V, 50 / 60 Hz U187A U187B

4-wire 3x 230 / 400 – 240 / 415 V, 50 / 60 Hz U189A U189B

Voltage –

Output of reactive energy (varh)

via interface only

2-wire 230 – 240 V, 50 / 60 Hz U181D –

3-wire 3x 400 – 415 V, 50 / 60 Hz U187D U187W

4-wire 3x 230 / 400 – 240 / 415 V, 50 / 60 Hz U189D U189W
