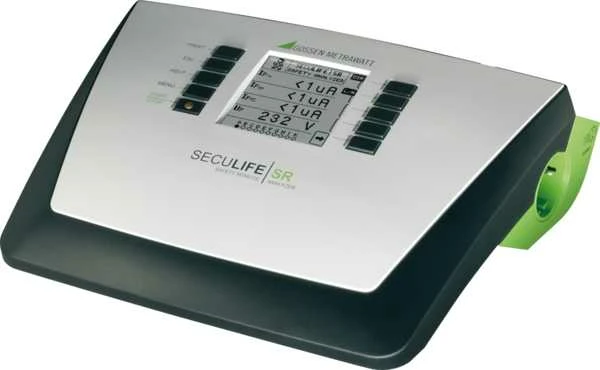

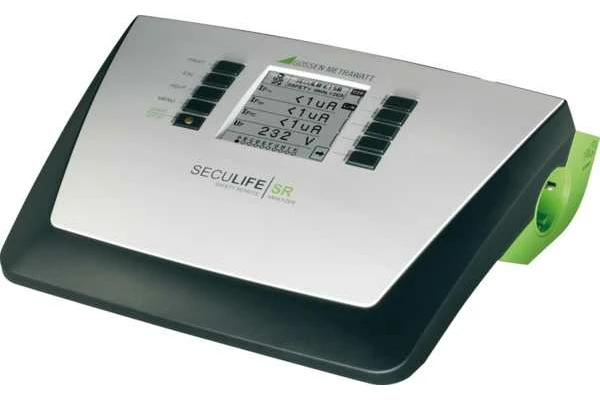

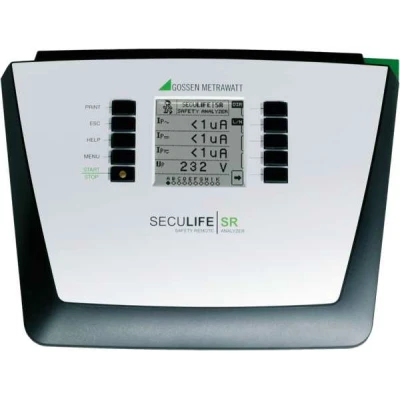

The SECULIFE SR offers all of the advantages of a universal, computer controllable measuring instrument for the field of medical technology. It’s used for testing the electrical safety of medical devices after repair or modification, and for conducting periodic tests at regular intervals.

Measurement of the following values in accordance with applicable regulations:

• Protective conductor resistance
• Insulation resistance
• Device leakage current
• Touch current
• Patient leakage current, AC and DC

Measuring methods for leakage current:

• Equivalent leakage current measurement
• Direct measurement
• Differential current measurement

Interfaces

• USB port
• Up to 10 applied parts can be connected (4 mm) and assigned to groups individually (via PC control program)

Power supply: Mains connection, broad range variable power pack from 90 to 240 V AC, 50 to 400 Hz

Variant: With German plug and socket
Article number: M692A

1 SECULIFE SR measuring instrument
1 Mains power cable (at instruments: via 16 A inlet plot – mains side: country-specific)
1 Probe cable with test probe
1 Plug-on alligator clip
1 Set of operating instructions
1 CD-ROM with description of the remote control
