Installation board – “service line with main ground bus” – for fault simulation for testing the effectiveness of protective measures for measurements in accordance with IEC 60364.6 and EN 50110 (DIN VDE 0100-600, 0105-100)

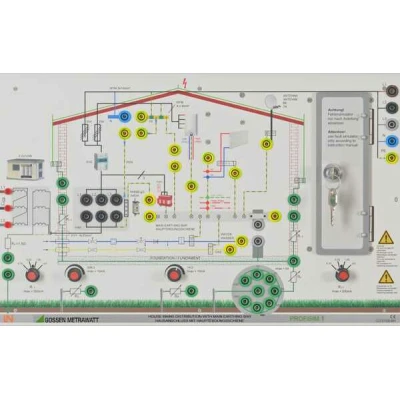

The PROFiSIM 1 installation board is a compact building service line with main ground bus and sub-distribution branch for consumer systems including a fault simulator.


  • Simulation of a building service line with main service fuse
  • Simulation of external and internal lightning protection
  • Implementation of various mains systems (TT, TN)
  • Main ground bus with all important equipotential bonding cables and earth strips
  • Single and double fault circuit
  • Simulation of faults via switches
  • Lockable fault simulator
  • Console-like housing
  • Can be used as a benchtop instrument or in an experimentation frame
  • Carrying case (optional)

Training personnel (electricians):

  • Teachers, trainers, instructors, laboratory supervisors


  • Trainees, students, apprentices

  • Low-resistance measurements at equipotential bonding conductors
  • Insulation resistance measurements
  • Measurements for testing RCDs
  • Loop impedance measurement
  • Earthing resistance measurements
  • Line voltage measurements

The PROFiSIM 1 board is equipped with all of the necessary modules of a building supply line including an extended main ground bus for the implementation of testing and fault options.

It’s used primarily for training and project work covering all aspects of “testing systems in accordance with IEC 60364-6 / DIN VDE 0100-600”.
