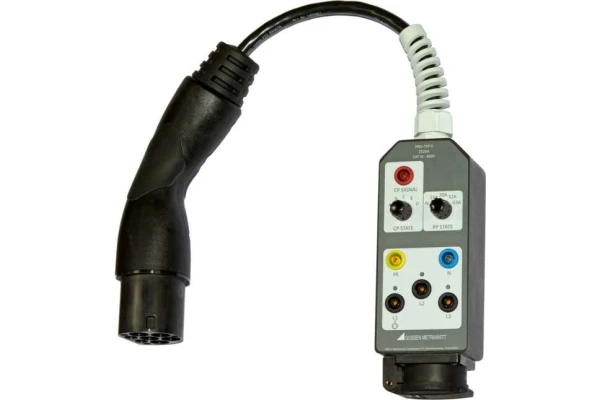

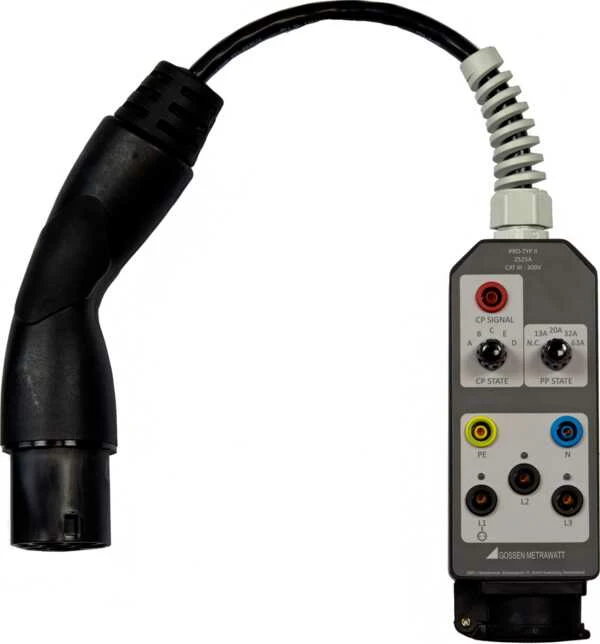

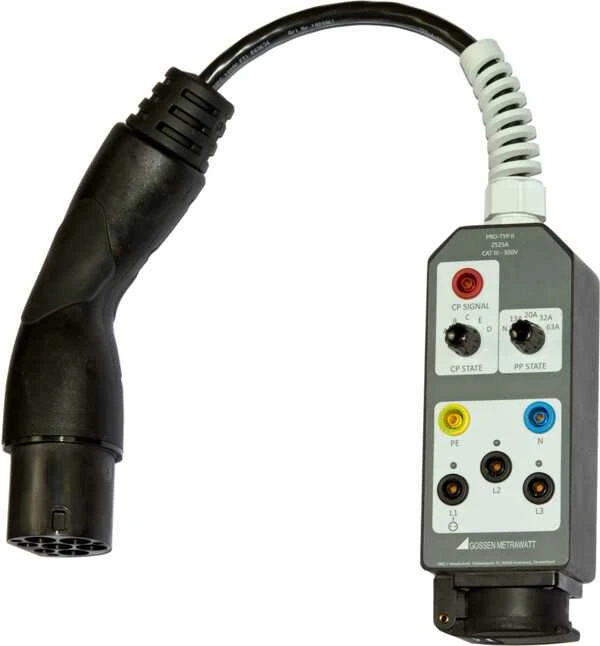

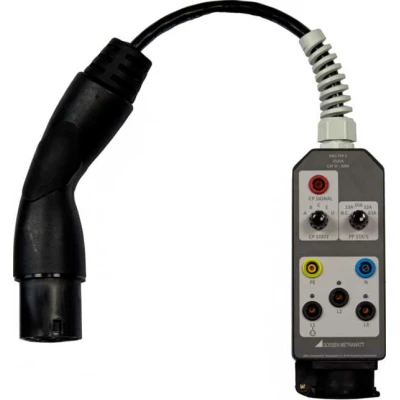

Test adapter for electric charging stations (single/3-phase, type 2) for PROFITEST

Single and 3-phase test adapter with type 2 plug for testing the effectiveness of protective measures at electric charging stations with the Profitest Master, simulation of fictitiously connected electric vehicles and current-carrying capacity of cord sets per IEC 61851-1

For vehicle simulation (CP)
States A, B, C, D and E can be simulated in accordance with IEC 61851. The various vehicle states are selected by means of a rotary switch.

  • State A – no vehicle connected
  • State B – vehicle connected, but not ready for charging
  • State C – vehicle connected and ready for charging, venting of the charging area not required
  • State D – vehicle connected and ready for charging, venting of the charging area required
  • State E – error: Short circuit between CP and PE via internal diode

Regarding cable simulation (PP):
The various codings for charging cables with 13, 20, 32 and 63 A can be simulated. It’s also possible to simulate the “no cable” state.

The various charging cables are simulated by connecting different resistances between PP and PE with the help of a rotary switch. The following values are possible in accordance with IEC 61851:

  • No cable – 0 Ω
  • 13 A cable – 1.5 kΩ
  • 20 A cable – 680 Ω
  • 32 A cable – 220 Ω
  • 63 A cable – 100 Ω
