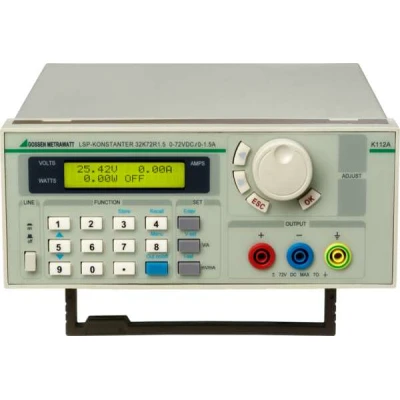

32K 72 R 1,5
Lab Power Supplies, Linear Controlled, Power: 0…100 W, Voltage: 0…72 V, Current: 0…1,5 A
- Short Name LSP 100-72
- Article No. K112A
- Type 32K72R1,5
- Front panel output 1
- Output voltage 0 to 72 V
- Output current 0 to 1,5 A
- Voltage setting resolution 1 mV at 0 ~ 3.999 V
- Voltage setting resolution 20mV at 4~75V
- Current < = 1 mA
- Mains correction, voltage 0.01% + 3 mV
- Mains correction, voltage 0.02% + 10 mV
- Current 0.02% + 8 mA
- Load correction, voltage 0.02% + 10 mV
- Current 0.02% + 8 mA
- Ripple < 2 mV RMS
- Mains input 115 / 230 V AC
- Mains input 50 / 60 Hz
- Dimensions ½ 19″, 2 standard height units,
- WxHxD (mm) approx. 215 x 100 x 280
- Weight approx. 6 kg
